Example Project

In this tutorial, we will explore an advanced Kedro project deployed with Dagster. We will clone the kedro-dagster-example repository, run it locally, and observe how dynamic pipelines, partitions, MLflow, and Optuna are translated into Dagster objects.

You can preview the project's pipelines on the shared Kedro-Viz page.

Project overview

The example builds on the Kedro Spaceflights tutorial with additions inspired by the GetInData blog post on dynamic pipelines and modified to demonstrate Dagster partitions. Key features:

• Multi-environment support: local, dev, staging, and prod environments, each with its own dagster.yml and catalog.yml under conf/<ENV>/.
• MLflow integration: Experiment tracking and model registry via kedro-mlflow.
• Hyperparameter tuning with Optuna: Distributed optimization via the optuna.StudyDataset.

Quick start

We begin by cloning the repository and running it locally.

1. Clone the repository:

   git clone https://github.com/stateful-y/kedro-dagster-example.git
   cd kedro-dagster-example


2. Install dependencies (using uv):

   uv sync
   source .venv/bin/activate


3. Run Kedro pipelines as usual:

   uv run kedro run --env local


4. List Dagster definitions to see what the plugin generates:

   kedro dagster list defs --env "local"


   Notice that this repository is already initialized for Kedro-Dagster, so you do not need to run kedro dagster init.

5. Launch the Dagster UI:

   kedro dagster dev -e "local"


   Our Kedro datasets appear as Dagster assets and our pipelines as Dagster jobs:

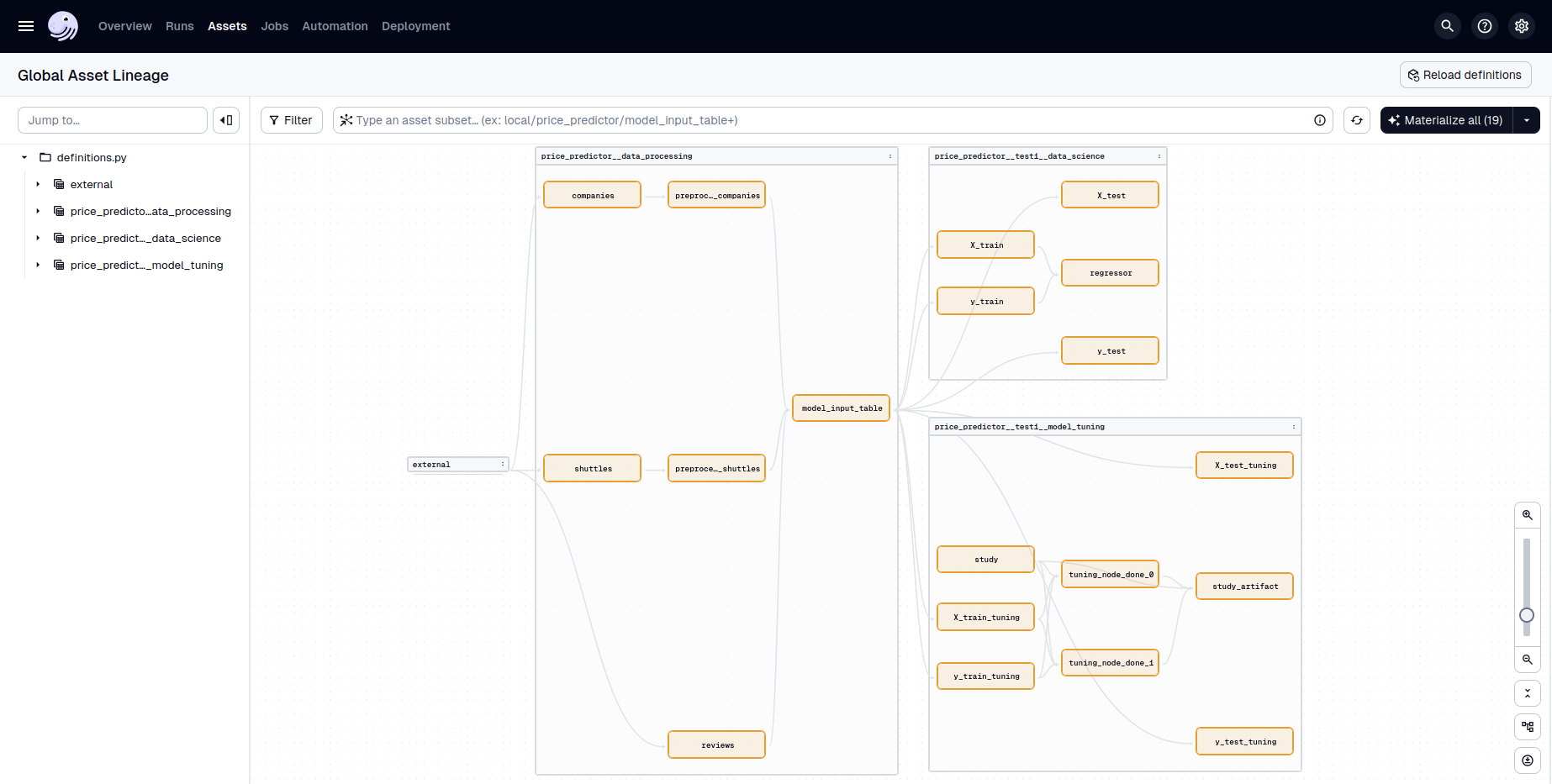

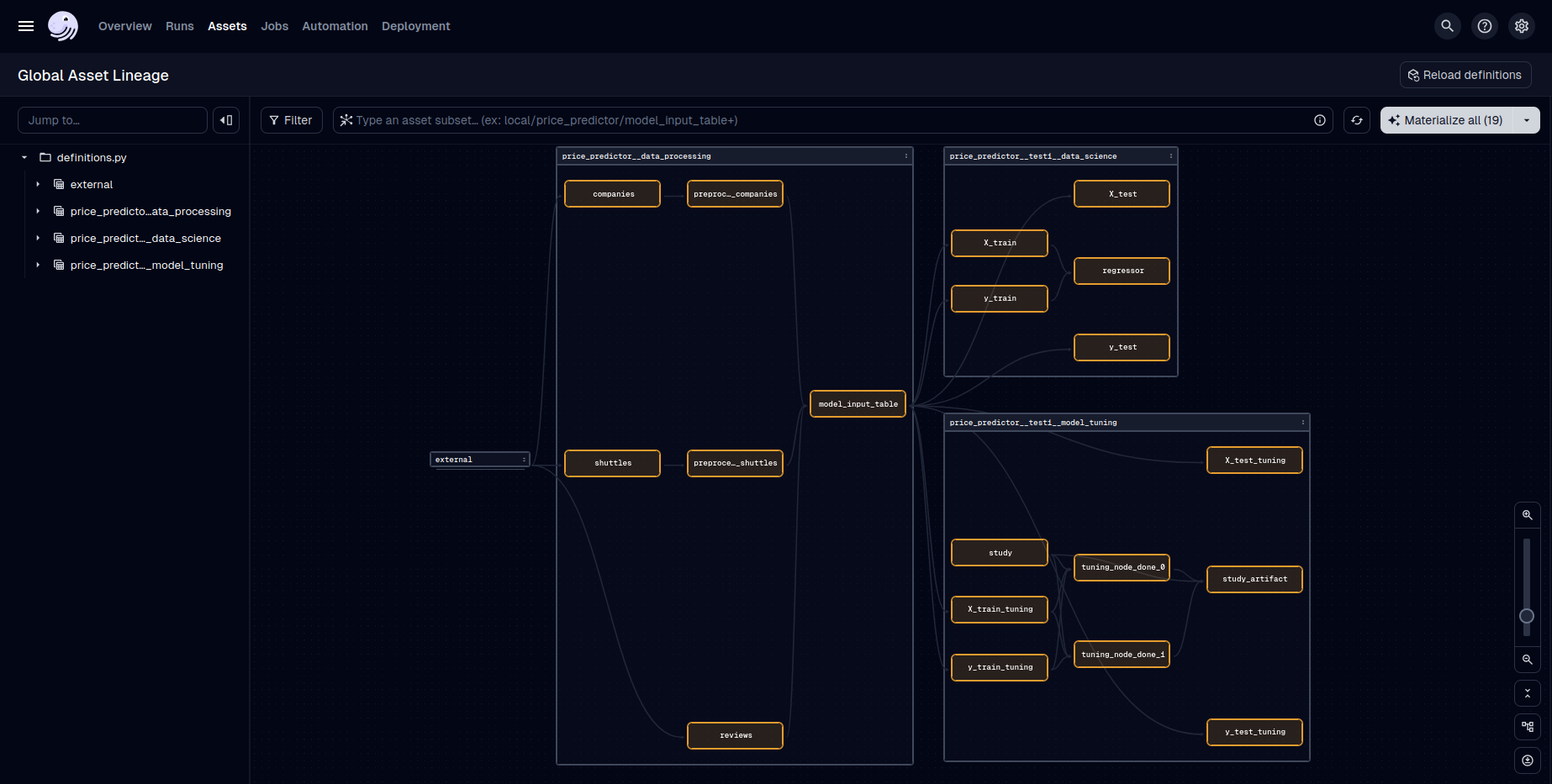

   Dagster Asset Lineage Graph generated from the example Kedro project.

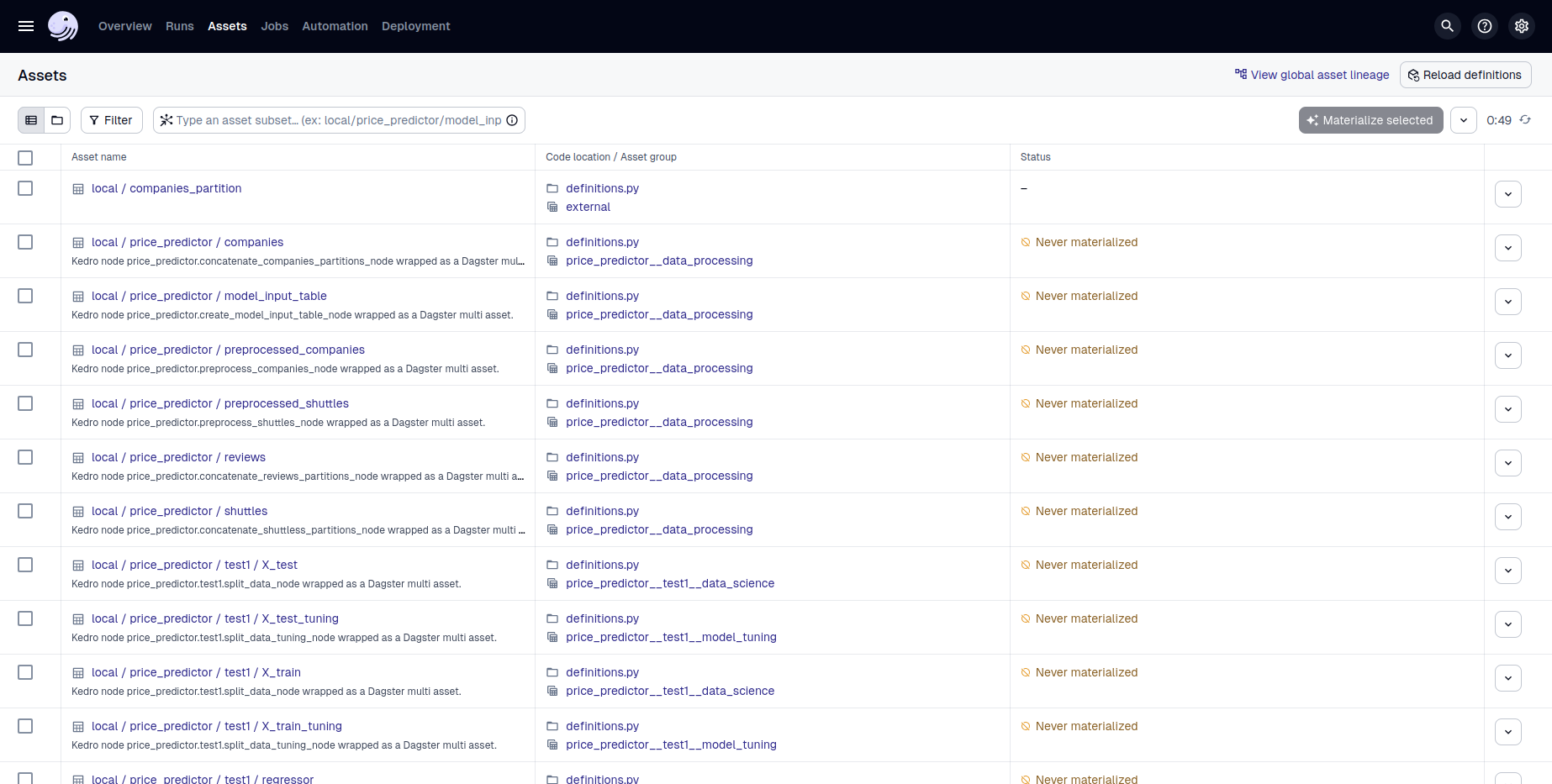

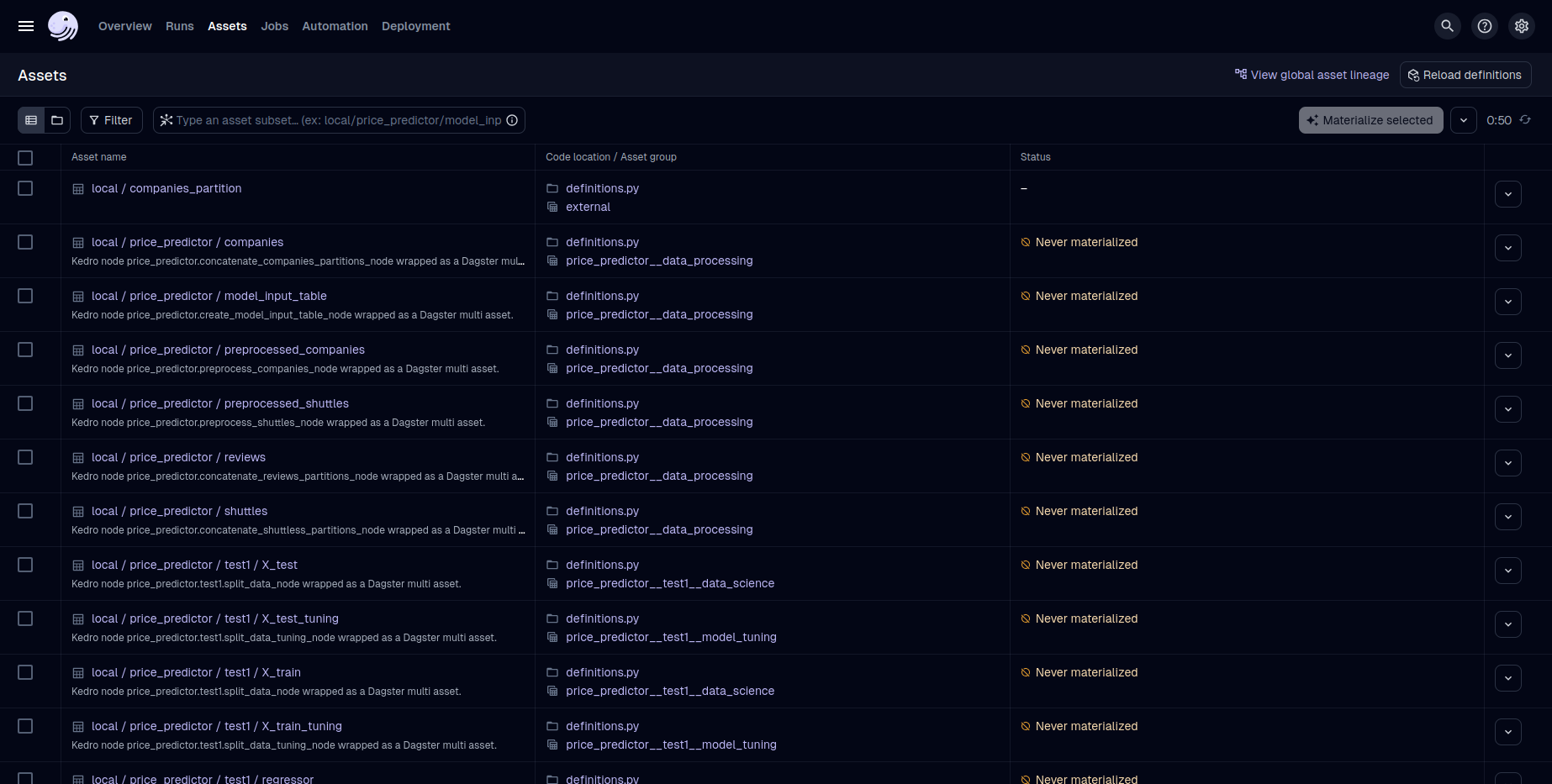

   Dagster Asset List generated from the example Kedro project.

Dynamic pipelines

This example builds pipelines dynamically and separates them across environments using the KEDRO_ENV environment variable. The selected environment controls which configuration files are loaded from conf/<ENV>/ and, as a result, which jobs appear in the Dagster UI.

Use --env for Kedro commands and -e for the Dagster UI:

kedro dagster dev -e "dev"

Pipelines are parameterized by namespace and tags. Rather than a custom merge resolver, parameters are namespaced via YAML inheritance.

The split across environments is orchestrated in settings.py:

if KEDRO_ENV == "local":
    DYNAMIC_PIPELINES_MAPPING = {
        "reviews_predictor": ["base", "candidate1"],
        "price_predictor": [
            "base",
            "candidate1",
            "test1",
        ],
    }
elif KEDRO_ENV == "dev":
    DYNAMIC_PIPELINES_MAPPING = {
        "price_predictor": ["test1"],
    }
elif KEDRO_ENV == "staging":
    DYNAMIC_PIPELINES_MAPPING = {
        "reviews_predictor": ["candidate1"],
        "price_predictor": ["candidate1"],
    }
elif KEDRO_ENV == "prod":
    DYNAMIC_PIPELINES_MAPPING = {
        "reviews_predictor": ["base"],
        "price_predictor": ["base"],
    }
else:
    raise ValueError(f"Unknown KEDRO_ENV value: {KEDRO_ENV}")

And pipeline_registry.py registers only the pipelines relevant to the active environment:

def register_pipelines() -> dict[str, Pipeline]:
    pipelines = find_pipelines()

    env_pipeline_names = ["data_processing", "data_science"]
    if KEDRO_ENV in ["local", "dev"]:
        env_pipeline_names.append("model_tuning")

    pipelines = {pipeline_name: pipelines[pipeline_name] for pipeline_name in env_pipeline_names}
    pipelines["__default__"] = sum(pipelines.values(), start=Pipeline([]))
    return pipelines

Notice that the DYNAMIC_PIPELINES_MAPPING is used to build pipeline variants dynamically inside each pipeline definition function. Changing KEDRO_ENV switches both configuration and the set of dynamic pipelines, which changes the jobs that appear in the UI.

Environments at a glance

The example defines four environments under conf/<ENV>/, each with its own catalog.yml and dagster.yml:

• local: Development with in-process execution.
• dev: Multiprocessing, scheduling, and the model_tuning pipeline. Requires a Postgres database (see below).
• staging and prod: Production-style configuration with multiprocessing and cron schedules.

Here is a trimmed conf/prod/dagster.yml showing how loggers, executors, schedules, and jobs fit together:

loggers:
  file_logger:
    log_level: INFO
    formatters:
      simple:
        format: "[%(asctime)s] %(levelname)s - %(message)s"
    handlers:
      - class: logging.handlers.RotatingFileHandler
        level: INFO
        formatter: simple
        filename: dagster_run_info.log
        maxBytes: 10485760 # 10MB
        backupCount: 20
        encoding: utf8
        delay: True

  console_logger:
    log_level: INFO
    formatters:
      simple:
        format: "[%(asctime)s] %(levelname)s - %(message)s"
    handlers:
      - class: logging.StreamHandler
        stream: ext://sys.stdout
        formatter: simple

executors:
  sequential:
    in_process:

  multiprocessing:
    multiprocess:
      max_concurrent: 2

schedules:
  daily:
    cron_schedule: "30 2 * * *"

jobs:
  reviews_predictor_data_processing_base:
    pipeline:
      pipeline_name: data_processing
      node_namespaces:
      - reviews_predictor
      tags:
      - base
    loggers: ["console_logger", "file_logger"]
    executor: multiprocessing
    schedule: daily

  reviews_predictor_data_science_base:
    pipeline:
      pipeline_name: data_science
      node_namespaces:
      - reviews_predictor
      tags:
      - base
    loggers: ["console_logger", "file_logger"]
    executor: multiprocessing
    schedule: daily

Notice that each Dagster job is generated from a filtered Kedro pipeline (selected by pipeline_name and narrowed by node_namespaces or tags). See PipelineOptions for all filtering parameters.

Partitions in practice

The local environment uses Dagster partitions via DagsterPartitionedDataset. Companies data are preprocessed in partitions defined as static CSV files:

Partition Type Selection

This example uses StaticPartitionsDefinition, which is currently the only supported partition type. See the partitions guide for details.

companies_dagster_partition:
  type: kedro_dagster.DagsterPartitionedDataset
  path: data/01_raw/companies/
  dataset:
    type: pandas.CSVDataset
  partition:
    type: dagster.StaticPartitionsDefinition
    partition_keys: ["1.csv","2.csv", "3.csv"]
  partition_mapping:
    "{namespace}.preprocessed_companies_dagster_partition":
      type: dagster.StaticPartitionMapping
      downstream_partition_keys_by_upstream_partition_key:
        1.csv: 10.csv
        2.csv: 20.csv
        3.csv: 30.csv

"{namespace}.preprocessed_companies_dagster_partition":
   type: kedro_dagster.DagsterPartitionedDataset
   path: data/02_intermediate/<env>/{namespace}/preprocessed_companies/
   dataset:
      type: pandas.CSVDataset
   partition:
      type: dagster.StaticPartitionsDefinition
      partition_keys: ["10.csv", "20.csv", "30.csv"]

Notice how the partition_mapping on the upstream dataset links raw files (1.csv, 2.csv, 3.csv) to downstream preprocessed files (10.csv, 20.csv, 30.csv). When a job launches, Dagster creates a separate op per upstream partition key, computing the corresponding downstream key based on this mapping.

For simpler cases where upstream and downstream partition keys match, use IdentityPartitionMapping:

companies_dagster_partition:
  type: kedro_dagster.DagsterPartitionedDataset
  path: data/01_raw/companies/
  dataset:
    type: pandas.CSVDataset
  partition:
    type: dagster.StaticPartitionsDefinition
    partition_keys: ["region_us.csv", "region_eu.csv", "region_asia.csv"]
  partition_mapping:
    "{namespace}.processed_companies_dagster_partition":
      type: dagster.IdentityPartitionMapping

Note

DagsterPartitionedDataset reduces to Kedro's PartitionedDataset when run outside of Dagster, so the pipeline remains runnable with kedro run.

You can also materialize partitioned assets from the Dagster UI: select a specific partition key in the Launchpad, or use a backfill for multiple keys at once.

Enforcing order with Nothing assets

Once all preprocessed partitions are ready, we collect them for downstream processing. To ensure collection only happens after all preprocessing completes, we use DagsterNothingDataset:

"{namespace}.is_company_preprocessing_done":
   type: kedro_dagster.DagsterNothingDataset

"{namespace}.preprocessed_companies_partition":
   type: partitions.PartitionedDataset
   path: data/02_intermediate/<env>/{namespace}/preprocessed_companies/
   dataset:
      type: pandas.CSVDataset

These appear as Nothing assets in Dagster and only enforce execution dependencies.

Custom logging integration

Kedro-Dagster unifies Kedro and Dagster logging so that logs from Kedro nodes appear in the Dagster UI. In node files, replace:

from logging import getLogger

with:

from kedro_dagster.logging import getLogger

Note

The getLogger call must happen inside the node function so the Dagster context is accessible. Avoid module-level loggers.

Dagster run loggers are configured via a LoggerCreator that reads the loggers section of dagster.yml. See the logging guide for full details.

Optuna hyperparameter tuning

The example uses the optuna.StudyDataset for distributed hyperparameter optimization. Two backends are demonstrated:

• SQLite for local (stored under data/):

  "{namespace}.{variant}.study":
    type: kedro_datasets_experimental.optuna.StudyDataset
    backend: sqlite
    database: data/06_models/local/{namespace}/{variant}/optuna.db
    study_name: "{namespace}.{variant}"
    load_args:
      sampler:
        class: TPESampler
        n_startup_trials: 2
        n_ei_candidates: 5
      pruner:
        class: NopPruner


• PostgreSQL for dev (via the provided Docker Compose service):

  "{namespace}.{variant}.study":
    type: kedro_datasets_experimental.optuna.StudyDataset
    backend: postgresql
    database: dev_db
    study_name: "{namespace}.{variant}"
    load_args:
      sampler:
        class: TPESampler
        n_startup_trials: 2
        n_ei_candidates: 5
      pruner:
        class: NopPruner
    versioned: true
    credentials: dev_optuna


For the dev environment, start Postgres and export connection variables:

docker compose -f docker/dev.docker-compose.yml up -d
export POSTGRES_USER=dev_db
export POSTGRES_PASSWORD=dev_password
export POSTGRES_HOST=localhost
export POSTGRES_PORT=5432

MLflow integration

The example is preconfigured for MLflow tracking with kedro-mlflow. Each environment's configuration directory includes an mlflow.yml. Models and artifacts are tracked via Kedro-MLflow datasets:

"{namespace}.{variant}.regressor":
   type: kedro_mlflow.io.models.MlflowModelTrackingDataset
   flavor: mlflow.sklearn
   artifact_path: "{namespace}/{variant}/regressor"

The example also shows MLflow alongside Optuna using the MLflowCallback, which logs Optuna trials as nested MLflow runs. The callback is added in the tuning node. See the MLflow integration guide for more details.

Common pitfalls

• Dev database not reachable

  Ensure the Docker container is running and env vars match conf/dev/credentials.yml.

• UI not reflecting config changes

  Stop and restart kedro dagster dev.

• Asset names differ from Kedro names

  Dots in Kedro dataset names become __ in Dagster. See naming conventions.

---

Next steps

• Configuration: Explore the configuration reference for all available options.
• API: See the API reference for API and CLI details.
